In the world of electrical measurement, accurately gauging current is paramount for safety, efficiency, and system performance. While traditional current transformers (CTs) have long been the industry standard, a more advanced and versatile technology – the Rogowski Coil – has emerged, offering significant advantages, especially in challenging applications. This guide will delve into what Rogowski Coils are, how they work, their benefits, and their diverse applications.
What is a Rogowski Coil?
A Rogowski Coil is an electrical device for measuring alternating current (AC) or high-frequency pulsed current. Unlike a traditional current transformer, which uses an iron core to concentrate magnetic flux, a Rogowski Coil is an air-cored toroidally wound coil. This means it consists of a helical coil of wire with the start and end of the helix brought together, often inside a flexible, non-magnetic enclosure, which can be opened and placed around a conductor without breaking the primary circuit. The output voltage of a Rogowski Coil is proportional to the rate of change of the current being measured.
How Does a Rogowski Coil Work?
The operating principle of a Rogowski Coil is based on Faraday’s Law of Induction. When an alternating current flows through a conductor encircled by the Rogowski Coil, it generates a varying magnetic field. This changing magnetic field induces a voltage in the coil winding. The voltage induced is given by the formula V = M * (dI/dt), where V is the induced voltage, M is the mutual inductance of the coil, and dI/dt is the rate of change of the primary current. Because the output is proportional to the derivative of the current, an electronic integrator circuit is typically used to convert this voltage signal back into a signal proportional to the original current. This integration process yields a precise representation of the AC current waveform.
Key Advantages Over Traditional Current Transformers
Rogowski Coils offer several compelling benefits that make them superior to conventional CTs in many scenarios:
- No Saturation: Traditional CTs with iron cores can saturate at high currents, leading to measurement inaccuracies and potential safety hazards. Rogowski Coils, being air-cored, do not suffer from saturation, ensuring linear response even with very high currents or transient peaks. This makes them ideal for fault current measurement.
- Wide Bandwidth: They can accurately measure a broad range of frequencies, from a few Hz up to several MHz, making them suitable for complex waveform analysis, power quality monitoring, and high-frequency applications.

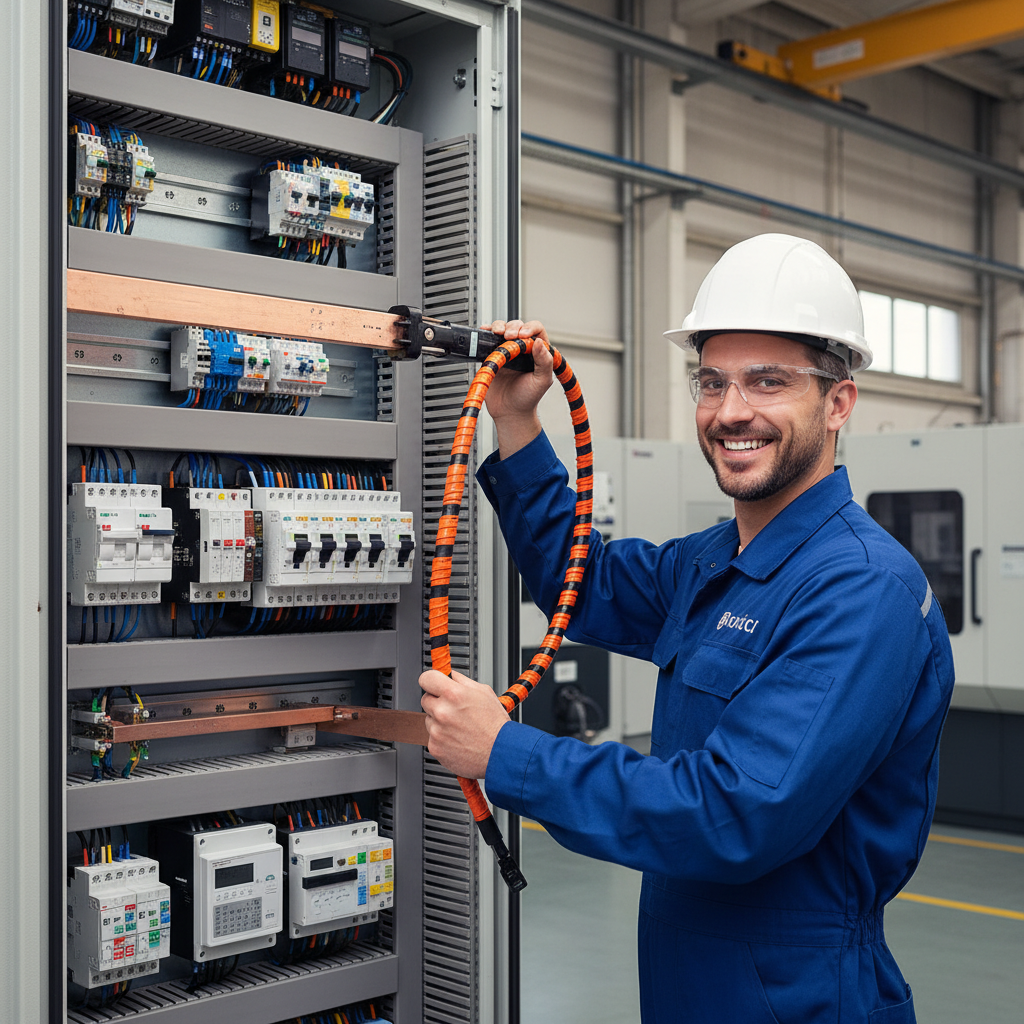

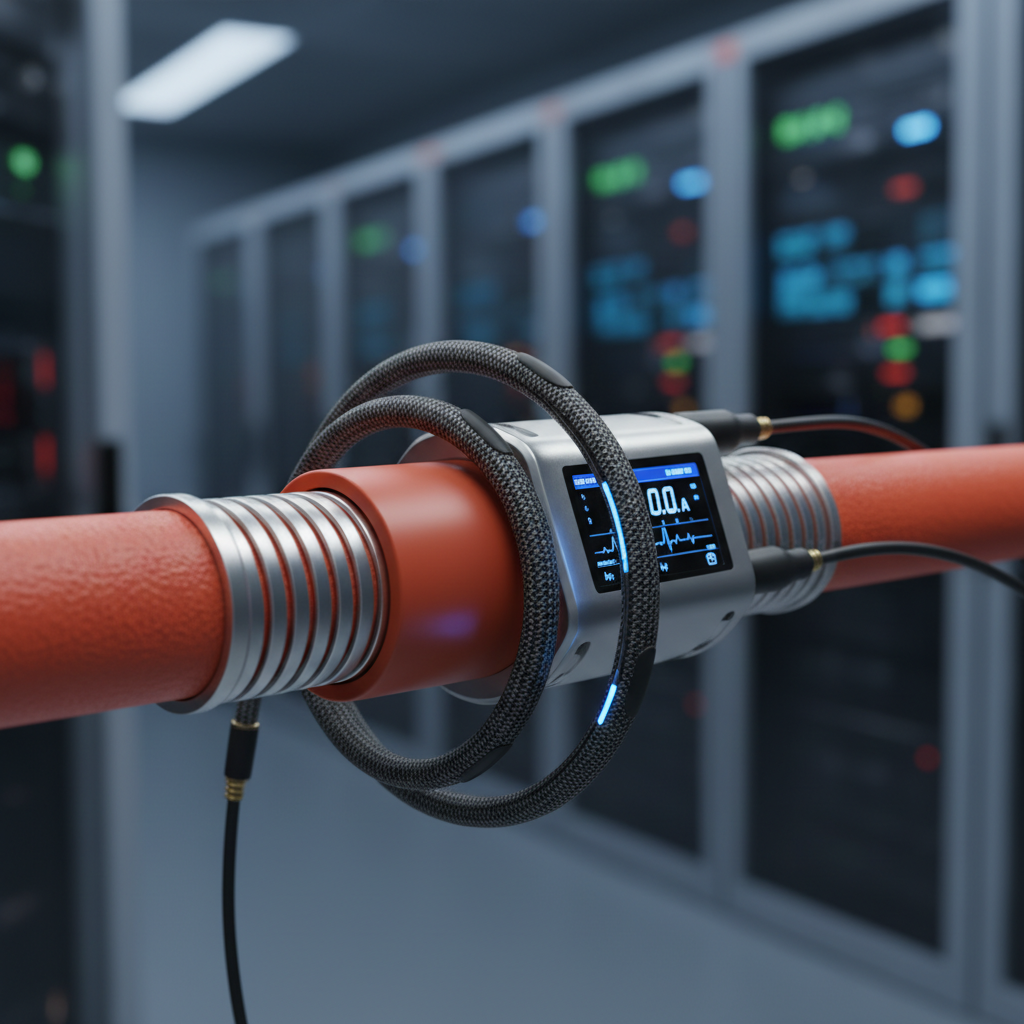

- Non-Intrusive Measurement: Their flexible and openable design allows for easy installation around existing conductors without interrupting the primary circuit, saving time and reducing downtime.
- Safety: The absence of a ferromagnetic core and the typically low output voltage mean Rogowski Coils inherently offer better isolation and are safer for personnel and equipment, especially during high-current events.
- Flexibility and Size: Available in various shapes and sizes, including highly flexible coils, they can fit into tight spaces or encircle large conductors where rigid CTs would be impractical.
- Lightweight: Without a heavy iron core, they are significantly lighter than equivalent CTs, simplifying installation and reducing structural load.
Practical Applications of Rogowski Coils
The unique characteristics of Rogowski Coils make them invaluable across a multitude of industries:
- Power Quality Monitoring: Their wide bandwidth is perfect for detecting harmonics, transients, and other power quality disturbances in industrial and utility networks.
- Circuit Breaker Testing: Ideal for measuring very high short-circuit currents during the testing and development of circuit breakers and protection devices due to their non-saturating nature.
- Arc Flash Detection: Used in systems designed to detect and mitigate arc flash events, where rapid and accurate measurement of fault current is critical.
- Renewable Energy Systems: Essential for monitoring current in solar inverters, wind turbine generators, and battery storage systems, where high currents and variable frequencies are common.
- Motor Control and Drives: Employed in variable frequency drives (VFDs) and motor control applications for precise current feedback, enabling efficient operation and protection.
- Research and Development: Their accuracy and flexibility make them a go-to tool for high-current experimentation and waveform analysis in laboratories.
Choosing the Right Rogowski Coil
When selecting a Rogowski Coil, consider factors such as the maximum current to be measured, the required frequency response, the accuracy class, and the environmental conditions. It’s also crucial to choose an appropriate integrator unit that matches the coil’s specifications to ensure accurate and reliable current measurements. Many modern Rogowski Coil systems come with integrated conditioning electronics, simplifying their deployment.
In summary, Rogowski Coils represent a significant leap forward in current measurement technology. Their immunity to saturation, wide bandwidth, flexibility, and inherent safety advantages make them an indispensable tool for a growing range of applications, from power utility monitoring to advanced industrial controls. As electrical systems become more complex and demand greater precision, Rogowski Coils are poised to play an even more critical role.
Ready to upgrade your current measurement capabilities? Explore the benefits of Rogowski Coils for your next project and ensure unparalleled accuracy and safety!
