Unlocking Precision: A Deep Dive into Rogowski Coils for Modern Current Measurement
In the dynamic world of electrical engineering and power systems, accurate and reliable current measurement is paramount. While traditional current transformers (CTs) have long been the industry standard, a more versatile and increasingly popular alternative has emerged: the Rogowski Coil. This innovative sensor offers significant advantages, especially in applications requiring high current measurement, wide frequency response, and immunity to saturation. Let’s explore what makes Rogowski Coils a game-changer.
What Exactly is a Rogowski Coil?

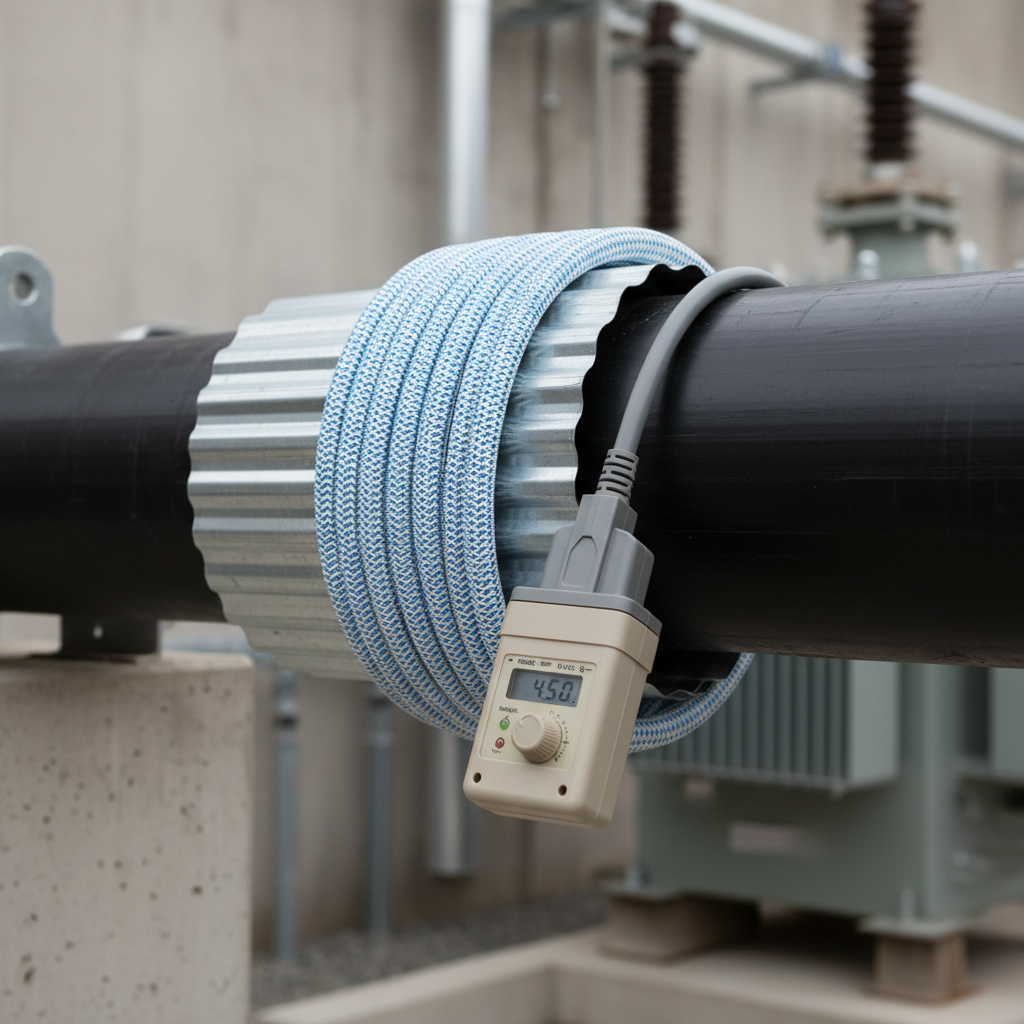

At its core, a Rogowski Coil is an electrical device for measuring alternating current (AC) or fast-changing direct current (DC) pulses. Unlike a conventional current transformer which has a ferromagnetic core, the Rogowski Coil is an air-cored toroidal coil. This fundamental difference is key to its unique performance characteristics. It’s essentially a helical coil of wire with the start and end of the coil brought to the same terminal, often forming a flexible loop that can be easily opened and wrapped around a conductor without breaking the circuit.
The Ingenious Principle Behind its Operation
The operation of a Rogowski Coil is based on Faraday’s Law of Induction. When an AC current flows through a conductor encircled by the coil, it produces a varying magnetic field. This field induces a voltage in the coil. However, unlike a CT where the output is directly proportional to the current, the output voltage of a Rogowski Coil is proportional to the rate of change of the current (dI/dt).
To obtain a signal proportional to the actual current, the induced voltage must be integrated, typically by an external electronic circuit called an integrator. This integration process converts the derivative signal back into a waveform that accurately represents the measured current. The absence of a magnetic core ensures a highly linear response, excellent transient performance, and immunity to saturation.
Why Choose a Rogowski Coil Over a Traditional CT?
Rogowski Coils offer several compelling advantages:
- No Saturation: As they lack a ferromagnetic core, Rogowski Coils cannot saturate, even with extremely high transient currents. This makes them ideal for fault current measurement and protecting equipment.
- Wide Dynamic Range: They can accurately measure currents ranging from a few amperes to several kiloamperes with a single device.
- Excellent Linearity: The air-core design ensures a highly linear response across the entire operating range.
- Wide Frequency Response: Capable of measuring currents from very low frequencies (down to DC with specific designs) to several megahertz, making them suitable for power quality analysis and harmonic measurement.
- Non-Invasive and Flexible: Many Rogowski Coils are flexible, allowing them to be opened and wrapped around existing conductors without interrupting the power supply.
- Lightweight and Compact: Generally lighter and smaller than CTs for comparable current ratings.
- Safety: They have no open-circuit secondary voltage hazard, making them inherently safer to handle.
Key Applications Where Rogowski Coils Shine
Their unique characteristics make Rogowski Coils indispensable in various applications:
- Power Quality Monitoring: Accurate measurement of harmonics, transients, and inrush currents in complex power systems.
- High Current Measurement: Ideal for measuring extremely high currents in industrial furnaces, welding applications, and substation monitoring.
- Protective Relaying: Their non-saturating nature provides reliable fault current detection for protection schemes.
- Renewable Energy Systems: Monitoring currents in solar inverters, wind turbine generators, and battery storage systems.
- R&D and Prototyping: Their flexibility and broad bandwidth make them valuable tools in laboratory environments.
Choosing the Right Rogowski Coil for Your Needs
When selecting a Rogowski Coil, consider the following:
- Current Range: Ensure the coil can handle the maximum expected current.
- Frequency Response: Match the coil’s bandwidth to your application’s frequency requirements.
- Accuracy Class: Determine the required measurement precision.
- Coil Length/Diameter: Choose a size appropriate for the conductor you need to encircle.
- Integrator Compatibility: Many coils come with integrated electronics, but external integrators offer more flexibility.
Proper installation is also crucial. Ensure the coil completely encircles the conductor and is positioned correctly for optimal performance. Avoid excessive bending beyond its specified radius if it’s a flexible type, and ensure the integrator is properly calibrated and connected.
Embrace the Future of Current Measurement
Rogowski Coils represent a significant advancement in current sensing technology. Their unparalleled benefits – including non-saturation, wide dynamic range, and flexibility – make them an ideal choice for a vast array of modern electrical applications, from sophisticated power quality analysis to robust fault detection. By understanding their principles and advantages, engineers and technicians can leverage these devices to achieve more accurate, safer, and reliable current measurements.
